Jaw Crusher

Jaw crusher has high crushing power and wide application range. They can be used to crush various hard materials such as rocks, ores, slag, concrete and construction waste. Our company, Great Wall Machinery, produces and sells various types of jaw crushers, with outputs ranging from 20 tons to 2,200 tons per hour. If you are interested, please contact us!

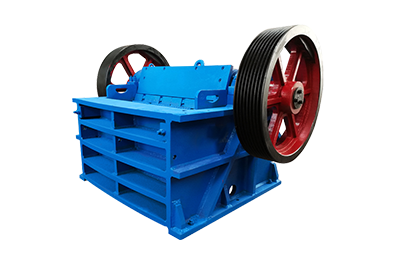

PE Jaw Crusher

capacity: 20-2200t/h

feeding size: 120-1500mm

Applicable Materials: Quartz, granite, basalt, marble, calcite, dolomite, limestone, gypsum, pebble, bluestone, feldspar, glass, cement clinker, concrete, coal gangue, construction waste, copper, manganese, gold ore, iron ore, and other ores.

  • High Crushing Efficiency
  • Simple Structure
  • Easy Maintenanc

What is Jaw Crusher?

A jaw crusher is a primary stone crushing machine used for crushing minerals or rocks into smaller sizes . It is a must-have machine in a wide range of fields like mining, quarrying, road aggregate, and construction industries.With more than 40 years of experience in crushing engineering, GreatWall Machinery has specially developed high-performance jaw crushers.The main models of jaw crushers currently produced in GreatWall Machinery include PE jaw crushers, ZSC jaw crushers, PEX jaw crushers,Mobile jaw crushing Station,Crawler jaw crushing station and Small jaw crushers.

jaw crusher

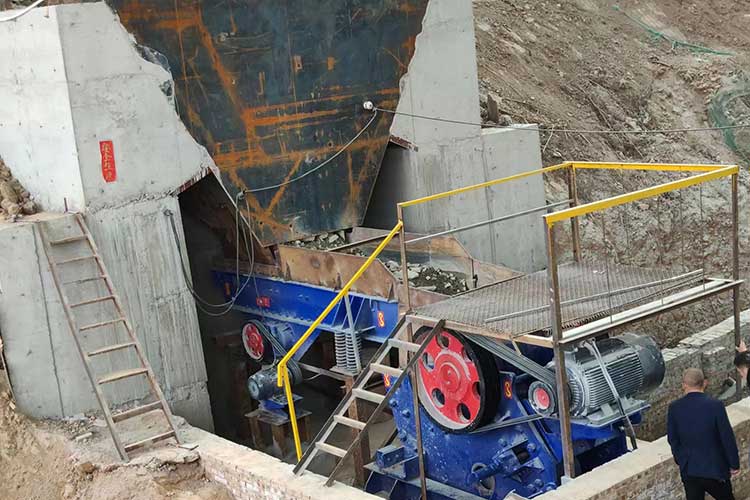

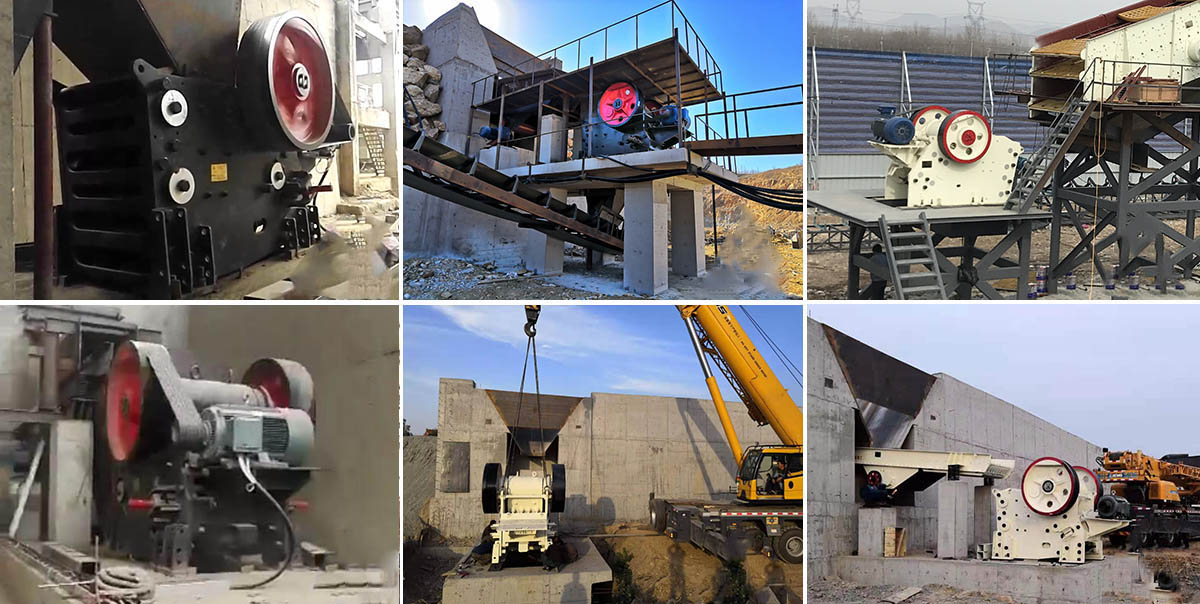

Stationary Jaw Crusher

The fixed jaw crusher is mainly used in fixed crushing and sand making production lines. The production operation is relatively stable, the structure is simple, and the production efficiency is high. Which models of our company's fixed jaw crushers are available? They are PE jaw crushers, PEX jaw crusher, ZSC jaw crusher.

Stationary Jaw Crusher advantage

  • Optimized deep cavity crushing, large inclination angle of elbow plate, large stroke, and reasonable rotating speed make the feed size larger, high output, and more uniform particle size;
  • Standard centralized lubrication provides more convenient bearing lubrication and saves manpower;
  • jaw plates is made of high strength steel, one time shape casting, and with characteristics of wear resistant, compression resistance, and long life;
  • Simple structure, reliable operation and low operating costs, safe lubrication system, and easy parts replacing
  • PE Jaw Crusher
  • ZSC Jaw Crusher
  • PEX Jaw Crusher

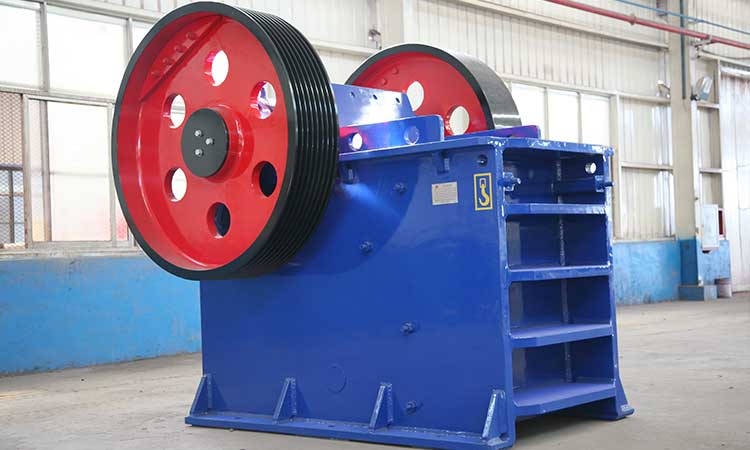

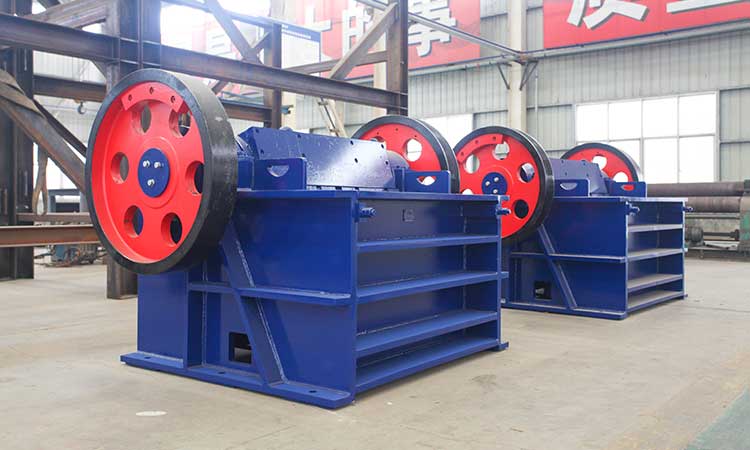

PE jaw crusher is a high-productivity crusher independently produced by GreatWallMachinery, which is mainly used for crushing all kinds of materials with compressive strength not exceeding 320MP. It is often used as a primary crusher in various stone production lines and ore-crushing production lines.

Model Feed inlet size (mm) Max. feeding size  (mm) Adjustable discharge opening (mm) Capacity  (tph) Power  (kW)
PE-150x250 150x250 125 10-40 1-3 5.5
PE-200x300 200x300 180 15-50 2-6 7.5
PE-200x350 200x350 180 18-60 3-10 11
PE-250x400 250x400 210 20-60 5--20 15
PE-400x600 400x600 340 40-100 16-60 30
PE-500x750 500x750 425 50-100 40-80 55
PE-600x900 600x900 500 65-150 60-150 75
PE-750x1060 750x1060 630 80-180 150-300 110
PE-900x1200 900x1200 750 95-220 220-400 132
PE-1000x1200 1000x1200 850 190-300 280-500 160
PE-1200x1500 1200x1500 1020 150-350 400-800 220
PE-1500x1800 1500x1800 1200 200-350 600-1000 315

European Type Jaw Crusher adopts world-class technology and high-end raw materials, which can crush hard stones or ores. Based on advantages of excellent quality, large output and long service life.

Model ZSC800 ZSC960 ZSC1000 ZSC1100 ZSC1250 ZSC1400 ZSC1600 ZSC2000
Feed Opening
800×510 960×580 1000×760 1100×850 1250×950 1400×1070 1400×1070 2000×1500
Feed Size
430 530 640 720 810 910 1020 1360
output size(mm) Capacity(t/h)
0-60 65-85
0-75 80-95
0-90 95-125 120-155
0-105 115-150 140-180 150-210 190-250
0-120 130-170 160-210 170-225 210-275
0-135 150-195 180-235 190-245 235-305
0-150 165-215 200-260 215-280 255-330 290-380
0-185 210-275 250-325 265-345 310-405 350-455 385-500
0-225 250-325 300-390 315-410 370-480 410-535 455-590 520-575
0-260 290-380 350-455 370-480 425-550 470-610 520-675 595-775 760-990
0-300     420-545 480-625 530-690 590-765 675-880 855-1110
0-340         590-770 655-850 750-975 945-1230
0-375         650-845 725-945 825-1070 1040-1350
0-410             900-1170 1130-1470

PEX Jaw Crusher is the most popular crusher in traditional crushing production line, PEX series jaw crusher is used for intermediate and fine crushing.. It is capable of breaking any material whose compressive strength is under 320Mpa.

Model Feeding opening(mm) Max. feeding size  (mm) Adjustable discharge opening (mm) Capacity  (tph) Power  (kW)
PEX-150x750 150x750 120 18-48 8--25 15
PEX-250x1000 250x1000 210 25-60 16-52 30-37
PEX-250x1200 250x1200 210 25-60 20-61 37-45
PEX-300x1300 300x1300 250 20-90 10-65 75

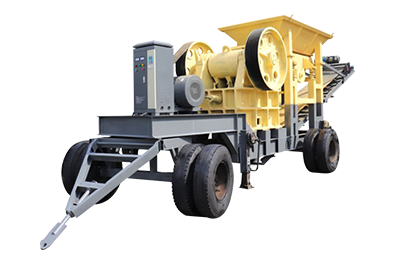

Mobile Jaw Crusher

All the equipment of the jaw-type mobile crushing station is vehicle-mounted, including the main equipment jaw-type crusher, feeder, vibrating screen, etc., which has high flexibility and strong maneuverability, and can save a lot of capital construction, demolition, and transition costs. Jaw mobile crushing plants can crush high strength, high hardness, and strong abrasive materials, the crushing strength can reach 320MP, one-time crushing materials to medium size, with high capacity and low operation cost, which is suitable for various materials.

Mobile Jaw Crusher advantage

  • The mobile jaw crusher has mobility, high chassis, and a small turning radius, and is equipped with traction steering shaft, which can realize free transition work;
  • Compared to stationary crushing and screening equipment, you can save more space by using a mobile jaw crusher.
  • design of hydraulic support makes the mobile crushing station more reasonable, and the frame not only increases the stability of the mobile station but also greatly improves the fluency of equipment use.
  • The mobile crushing station can realize from a single application to multiple online applications, and meet the larger production needs of customers.
  • Mobile Jaw Crusher
  • Crawler Jaw Crusher
  • Compact Mobile Jaw Crusher

The design concept of Jaw Mobile Crushing Plant is fully adapted to the obstacles of various situations of mobile crushing, crushing site, environment, and basic configuration to customers' crushing operations, and truly provides customers with simple, low-cost crushing equipment, which is widely used in mining, construction waste, metallurgy, chemical industry, building materials, water conservancy and hydropower and other often need to be relocated to work on the processing of materials.

Model Jaw crusher Vibrating feeder belt conveyor Number of axis Power Capacity Transportation dimensions (mm)
ZSLY-E57-G3090 PE500*750 GZD300*90 B650*10m 2 70kw 40-110 9400*2450*3650
ZSLY-E69-W3896 PE600*900 ZSW380*96 B800*12m 2 100kw 50-180 12500*2800*3960
ZSLY-E710-W4211 PE750*1060 ZSW110*420 B1000*12m 3 140kw 110-250 13500*2950*4300
ZSLY-C96-W3896 ZSC960 ZSW380*96 B800*12m 2 125Kw 80-200 12500*2800*3960
ZSLY-C100-W4211 ZSC1000 ZSW420*110 B1000*12m 3 140Kw 150-280 13600*2900*4300
ZSLY-C110-W4913 ZSC1100 ZSW490*130 B1000*12m 3 200kw 250-450 13800*3000*4400

Because of its practical equipment performance, the crawler jaw mobile crushing station is often used for processing materials with high hardness and high abrasion, which can process all kinds of ores with compressive strength not higher than 320MPa to medium particle size at one time. It is widely used in mining, metallurgy, building materials, highway, railway, water conservancy, chemical industry and other industries. At the same time, the crawler jaw mobile crushing station has a simple structure, easy maintenance and overhaul, and low maintenance and use cost.

Model length(mm) width(mm) height(t/h) weight(t) Max.feeding size(mm) feeding size(mm) output size(mm)
MJ150 124800 3020 3510 40 460 930X580 40-175
MJ250 15230 3020 3610 50 560 1060X700 70-200
MJ350 16190 3020 3810 52 600 1130X750 70-200
MJ550 17630 3120 3810 60 700 1200X870 70-275

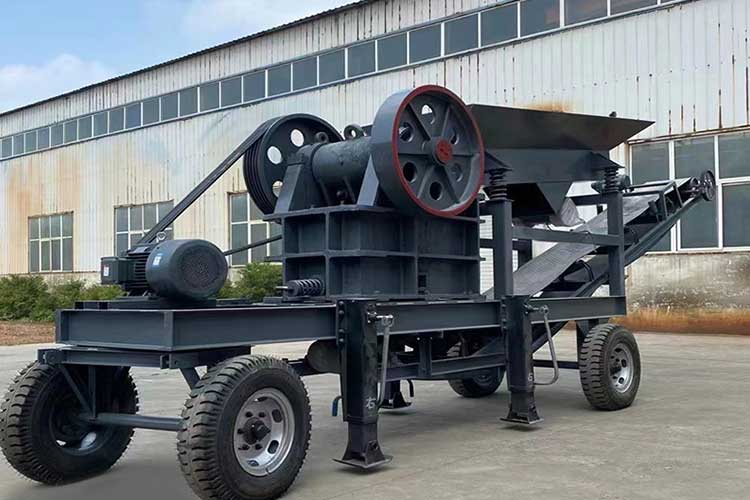

Compact Mobile Jaw Crusher can easily move between different production sites, reducing transportation needs and operating costs. They are widely used in aggregate production, recycling applications, and mining operations.

Crusher Model Crusher Model Max feeding size (mm) Discharge size (mm) Capaticy(t/h) Crusher Power  (Kw)
Jaw Crusher GWE400 PE400×600 340 40-100 16-60 30
GWE500 PE500×750 425 50-100 40-80 55
GWE600 PE600×900 500 65-150 60-150 75
GWE750 PE750×1060 630 80-180 150-300 110
GWEX300 PEX300×1300 250 20-90 10-65 75

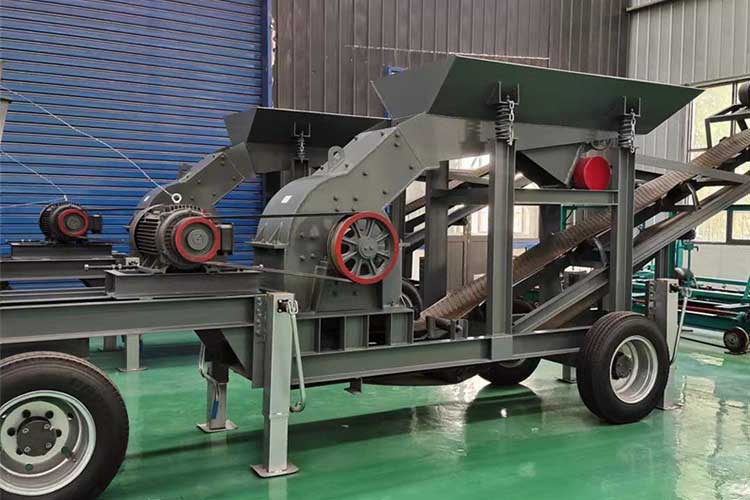

Hammer Crusher GWC800 PC1000×800 580 0-45 30-40 110
GWC1000 PC1000×1000 580 0-45 40-80 132
GWC1308 ZSPCD1308 600 0-60 100-160 132

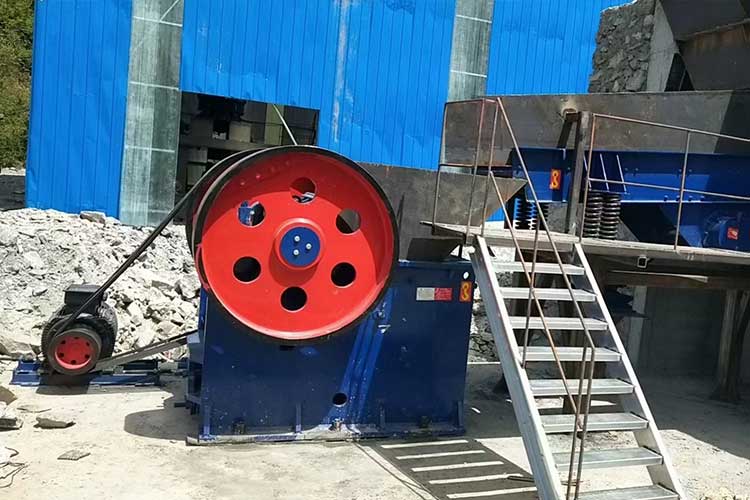

Small Jaw Crusher

small jaw crusher is kind of small scale stone crusher machine,it is widely used in the world market nowadays, for primary crushing of hard rocks and block materials.The product specification is complete, jaw crusher crushing materials of compressive strength of up to 300Mpa, is a complete set of broken lines in the first choice of primary crushing equipment.

Mobile Jaw Crusher advantage

  • Low cost, Long service life, Simple structure.
  • Easy maintenance,Stable performance.
  • Strong construction,High crushing ratio.
  • Crusher with Less machine stop time
Model Feeding opening size (mm) Max feeding size (mm) Discharge size (mm) Capacity (t/h) Motor power (kw)
PE150x250 150x250 125 10-40 1-3 5.5
PE-200x300 200x300 180 15-50 2-6 7.5
PE-200x350 200x350 180 18-70 3-10 11
PE-250×400 250×400 210 20-60 5-20 15
PE-400x600 400x600 340 40-100 16-60 30
PE-500x750 500x750 452 50-100 40-80 55
PE-600x900 600x900 500 65-150 60-150 75
PE-750x1060 750x1060 630 80-180 150-300 110

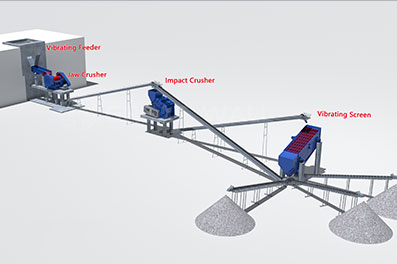

Jaw Crusher Plant Solution

Jaw Crusher Case

150tph Granite Mobile Crushing Line in Mongolia

Country: Mongolia

Material: granite

Feeding Size: 600mm

Capacity: 150t/h

Get The Price Now

100t/h River Stone Sand Making Plant in Zimbabwe

Country: Zimbabwe

Material: River Stones

Feeding Size: 0-600mm

Capacity: 100t/h

Get The Price Now

500T/H Basalt Stone Crushing Line in the Philippines

Country: Philippines

Material: Basalt

Feeding Size: 940mm

Capacity: 500t/h

Get The Price Now

Jaw Crusher Parts

Toggle plate

Lining plate

Jaw plate

Movable jaw plate

Guard Board

Jaw plat
