Cone Crusher

The cone crusher is a kind of stone crusher machine applied for metallurgy, building, road construction, chemical engineering, etc. It is suitable for medium and fine crushing with the features of high crushing ratio, high efficiency, low energy consumption and uniform particle size.

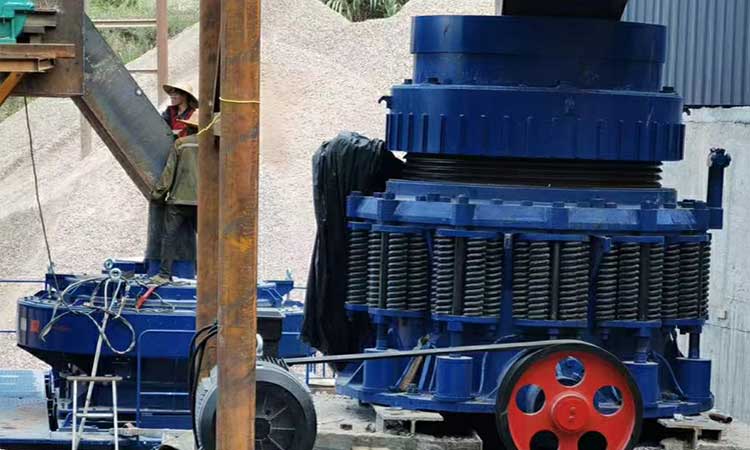

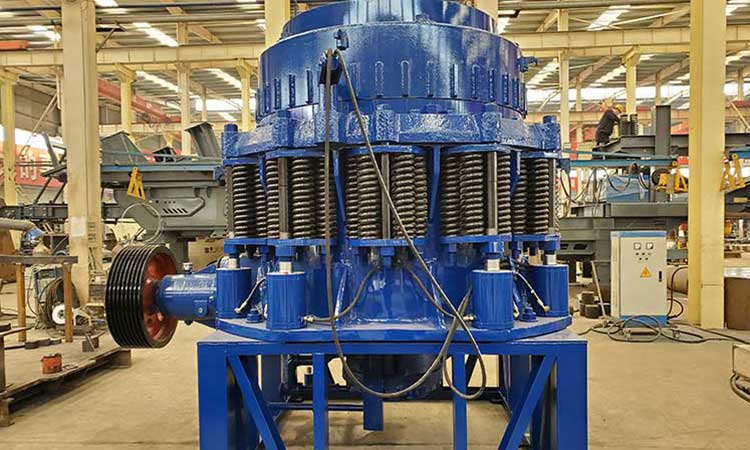

Spring Cone Crusher

capacity: 10-700t/h

feeding size: 35-300mm

Applicable Materials: river pebbles, granite, marble, limestone, fluorite ore, gold ore, barite, calcite, dolomite, bluestone, glass, basalt, iron ore, etc.

High Crushing Efficiency
reliable performance
Low production cost

Get a quote whatsapp

PY Cone Crusher
Symons Cone Crusher
GP/HP Cone Crusher
Mobile Cone Crusher

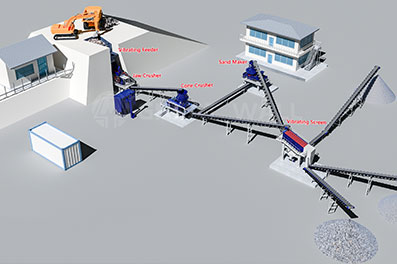

Solution
Cases

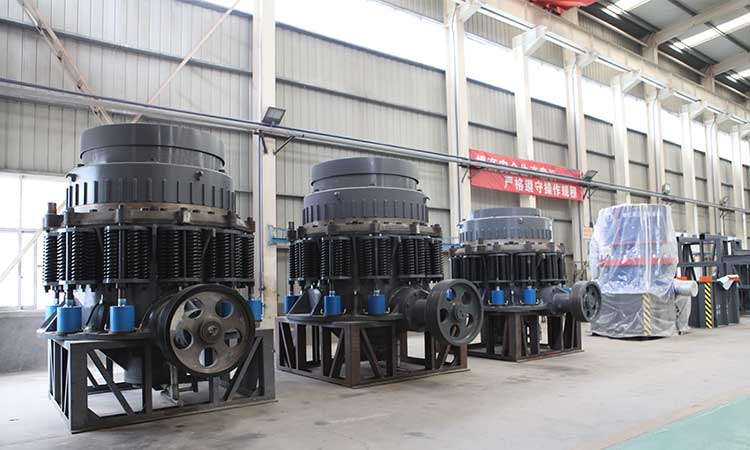

PY Cone Crusher

Spring cone crusher can be widely used in the metallurgical industry, construction industry, road building industry, chemical industry, and phosphate industry, suitable for crushing hard and medium hard ore and rock, such as iron ore, copper ore, limestone, quartz, granite, basalt, diabase and so on.

Get a quote whatsapp

Model	Diameter of moving cone(mm)	Feeding open(mm)	Discharge opening (mm)	Capacity(tph)	Weight(t)	Power (kW)
PYB600	600	65	12--25	40	5	30
PYD600	600	35	3--13	12--23	5.5	30
PYB900	600	115	15-50	50-90	11.2	55
PYZ900		60	5--20	20-65	11.2
PYD900		40	3--13	15-50	11.3
PYB1200	1200	145	20-50	110-168	24.7	110
PYZ1200		100	8---16	42-135	25
PYD1200		50	3--15	18-105	25.3
PYB1750	1750	215	25-50	180-360	50.3	160
PYZ1750		185	10--30	80-210	50.3
PYD1750		85	5--15	60-180	50.2
PYB2200	2200	300	30-60	420-700	90	280
PYZ2200		230	10--30	130-410	80
PYD2200		100	5--16	80-200	81.4

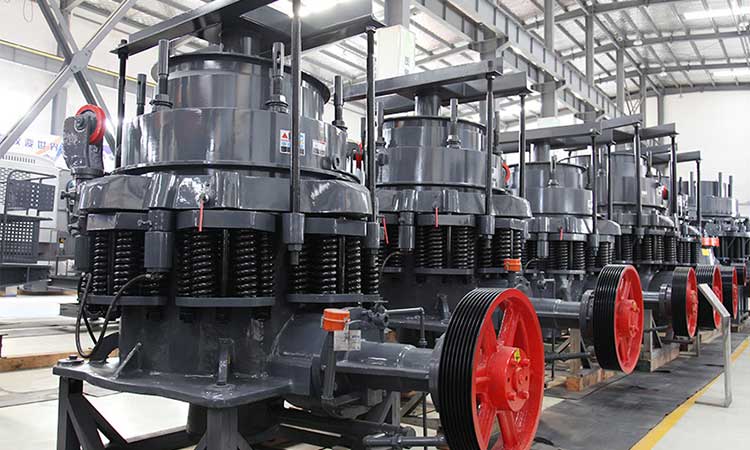

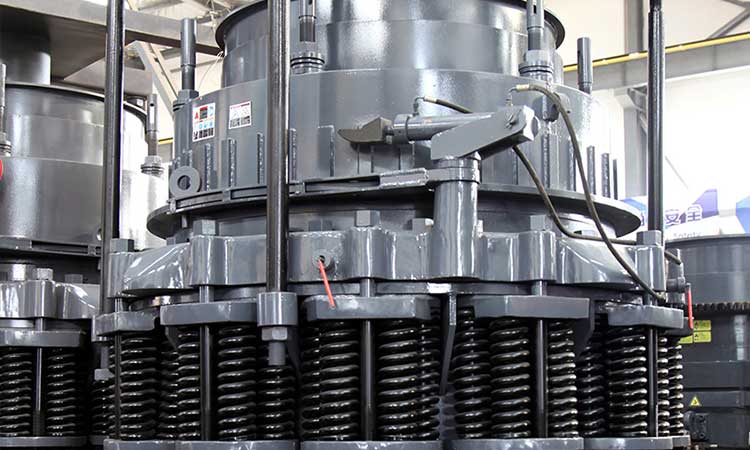

Symons Cone Crusher

Simmons Cone Crusher is a high-performance cone crusher independently manufactured by GreatWall Machinery. This series of cone crushers is superior to ordinary spring cone crushers in terms of production capacity, product particle size, product shape, equipment weight, maintenance, and operation. This machine is divided into standard coarse type and short head fine type, which can be selected by users according to specific needs.

Get a quote whatsapp

Specification	Model	Cavity type	Max. diameter of moving cone (mm)	Discharge opening (mm)	Max. feeding size(mm)	Power (kW)	Weight （t）
2'FT	PSGB-0607	（F）	600	6-38	60	22	4500
	PSGB-0609	（M)	600	10-38	80	22	4500
	PSGB-0611	（C）	600	13-38	90	22	4500
	PSGD-0603	（F）	600	3.0-13	30	22	4500
	PSGD-0605	（C）	600	5.0-16	40	22	4500
3'FT	PSGB-0910	（F）	900	9.0-22	85	75	9980
	PSGB-0917	（C）	900	13-38	150	75	9980
	PSGB-0918	(EC）	900	25-38	150	75	9980
	PSGD-0904	（F）	900	3.0-13	35	75	10530
	PSGD-0906	（M)	900	3.0-16	65	75	10530
	PSGD-0907	（C）	900	6.0-19	85	75	10530
4.25'FT	PSGB-1313	（F）	1295	13-31	115	160	22460
	PSGB-1321	（M)	1295	16-38	178	160	22460
	PSGB-1324	（C）	1295	19-51	205	160	22460
	PSGB-1325	(EC）	1295	25-51	220	160	22460
	PSGD-1306	（F）	1295	3.0-16	54	160	22590
	PSGD-1308	（M)	1295	6.0-19	76	160	22590
	PSGD-1310	（C）	1295	8.0-25	89	160	22590
	PSGD-1313	(EC）	1295	16-25	113	160	22590
5.5'FT	PSGB-1620	（F）	1676	16-38	178	220	43270
	PSGB-1624	（M)	1676	22-51	205	220	43270
	PSGB-1626	（C）	1676	25-64	228	220	43270
	PSGB-1636	（EC）	1676	38-64	313	220	43270
	PSGD-1607	（F）	1676	5.0-13	60	220	43870
	PSGD-1608	（M)	1676	6.0-19	76	220	43870
	PSGD-1613	（C）	1676	10.0-25	113	220	43870
	PSGD-1614	(EC）	1676	13-25	113	220	43870
7'FT	PSGB-2127	（F）	2134	19-38	236	400	86730
	PSGB-2133	（M)	2134	25-51	284	400	86730
	PSGB-2136	（C）	2134	31-64	314	400	86730
	PSGB-2146	(EC）	2134	38-64	391	400	86730
	PSGD-2110	（F）	2134	5.0-16	89	400	89500
	PSGD-2113	（M)	2134	10.0-19	113	400	89500
	PSGD-2117	（C）	2134	13-25	151	400	89500
	PSGD-2120	(EC）	2134	16-25	172	400	89500

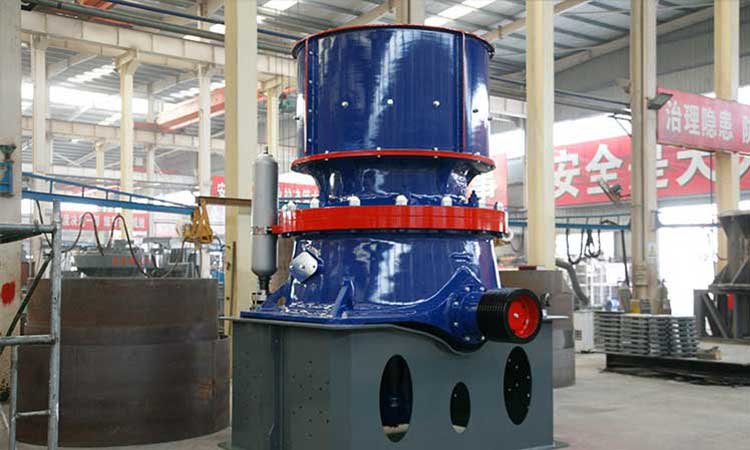

GP Cone Crusher / HP Cone Crusher

This series Single Cylinder Hydraulic Cone Crusher represents the world's comparative crusher technology, and has many advantages that traditional crushers can't compare with: high crushing efficiency, low production cost, convenient maintenance and adjustment, excellent particle size of crushed products, and can be widely used in medium crushing, fine crushing and ultra-fine crushing operations.

Get a quote whatsapp

type	Cavity type	feeding size(mm)	Discharge size(mm)	power(kw)
GP100	S1	≤240	≥22	≤90
	S2	≤200	≥19
	H1	≤135	≥10
	H2	≤65	≥8
	H3	≤38	≥4
GP160	S1	≤360	≥25	≤160
	S2	≤300	≥22
	S3(粗)	≤235	≥19
	H1	≤185	≥13
	H2	≤90	≥10
	H3	≤50	≥6
GP250	S1	≤450	≥35	≤250
	S2	≤400	≥29
	S3(粗)	≤300	≥25
	H1	≤215	≥16
	H2	≤110	≥13
	H3	≤70	≥8
GP315	S1	≤560	≥41	≤315
	S2	≤500	≥38
	H1	≤275	≥16
	H2	≤135	≥16
	H3	≤65	≥13

This machine is suitable for crushing all kinds of ores and rocks with medium or above hardness, mainly used in the second-stage crushing and third-stage crushing in metal mines and building sand and gravel processing. This machine is divided into standard type and short head type. Generally speaking, the standard feeding granularity is large and the discharge granularity is coarse. The short head type crushing cone is steep and the feeding particle size is small, which is beneficial to the production of fine-grained materials. Therefore, the standard type is generally used for coarse and medium crushing, while the short head type is used for medium and fine crushing.

Get a quote whatsapp

Model	Cavity	Standard type		Short type		Power(kw)	Capacity (t/h)
Model	Cavity	Feeding size(mm)	Min.discharging size (mm)	Feeding Size (mm)	Min.discharging size (mm)	Power(kw)	Capacity (t/h)
HP200	Extra coarse	/	/	/	/	132-200	90-250
	Coarse	185	19	76	10
	Medium	125	17	54	6
	Fine	95	13	23	6
	Extra fine	/	/	10	5
HP300	Extra coarse	230	25	/	/	180-250	115-440
	Coarse	210	20	75	10
	Medium	150	15	50	8
	Fine	105	10	20	6
	Extra fine	/	/	20	6
HP400	Extra coarse	295	30	/	/	280-355	140-630
	Coarse	250	25	90	10
	Medium	195	20	50	8
	Fine	110	14	40	6
	Extra fine	/	/	30	6
HP500	Extra coarse	330	30	/	/	355-450	175-790
	Coarse	285	25	90	13
	Medium	200	20	55	10
	Fine	133	16	40	8
	Extra fine	/	/	35	6
HP800	Extra coarse	353	32	/	/	550-630	260-1200
	Coarse	297	32	155	13
	Medium	267	25	92	10
	Fine	219	16	33	6
	Extra fine	/	/	/	/

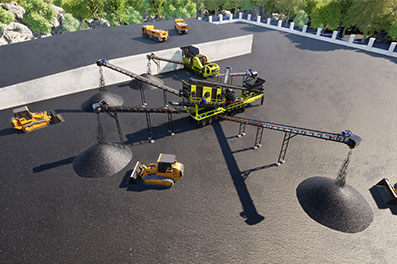

Mobile Cone Crusher / Crawler Cone Crusher

The cone mobile crushing station is mainly used in the field of medium and fine crushing operations. In sand and gravel production operations, sand and gravel products with high hardness and finer grain size are produced according to different stone and finished product uses. The cone crusher can be adjusted to different crushing cavity types according to the actual needs, which expands the application field and scope of the medium crushing cone mobile crushing plant.

Get a quote whatsapp

Model	Cone crusher	vibrating screen	Number of axles	Power(Kw)	Capacity	Transportation dimensions (mm)
ZSLY-P1200-3YK1860	CS1200	3YK1860	2	180	70-180	1260030004300
ZSLY-P1400-3YK2160	CS1400	3YK2160	3	275	100-220	1380030004400
ZSLY-CH430-3YK1860	CH430	3YK1860	2	210	80-180	1350030004400
ZSLY-C440-3YK2160	CH440	3YK2160	3	275	120-250	1380030004400
ZSLY-P200-3YK1860	HP200	3YK1860	2	210	80-180	1280030004300
ZSLY-P300-3YK2160	HP300	3YK2160	3	275	120-250	1350030004400

The crawler-type cone mobile crushing station belongs to medium and fine crushing operation in the crushing production line, but it is different from crawler-type counterattack mobile crushing station. As the two medium crushing equipment, the crawler-type counterattack mobile crushing station is usually used for crushing operations below limestone hardness considering the production cost, while the crawler-type counterattack mobile crushing station can realize crushing operations for materials with different hardness, especially for materials with high hardness and strong abrasion.

Get a quote whatsapp

Model	length(mm)	width(mm)	height(t/h)	weight(t)	crusher type	Vibrating feeder	output size(mm)
MC300	13880	3220	3810	52	Single cylinder	/	25-50
MC400	17880	3320	3810	57	Single-cylinder	1S1540	25-54
MC500	14880	3220	3610	55	Multi-cylinder	/	10-45
MC550	17880	3320	3610	60	Multi-cylinder	1S1540	10-45
