Mobile Crusher

GreatWall offers customers a variety of models of mobile crushers which are preferred by contractors engaged in road construction due to their flexibility. Such crushing plants can be constructed more efficiently and rapidly, resulting in faster earnings for the users.

Mobile Jaw Crushing Station
Mobile Impact Crushing Station
Mobile Cone Crushing Station
Mobile Sand Making Station
Mobile Screening Station
Crawler Jaw Crushing Station
Crawler Impact Crushing Station
Crawler Cone Crushing Station
Crawler Screening Station
Compact Mobile Jaw Crushing Station
Compact Mobile Hammer Crushing Station
Mobile Jaw Crushing Station
Mobile Impact Crushing Station
Mobile Cone Crushing Station
Mobile Sand Making Station
Mobile Screening Station
Crawler Jaw Crushing Station
Crawler Impact Crushing Station
Crawler Cone Crushing Station
Crawler Screening Station
Compact Mobile Jaw Crushing Station
Compact Mobile Hammer Crushing Station

Mobile Jaw Crusher

capacity: 500-800t/h

feeding size: 40-450mm

Applicable Materials: Quartz, granite, basalt, marble, calcite, dolomite, limestone, gypsum, pebble, bluestone, feldspar, glass, cement clinker, concrete, coal gangue, construction waste, copper, manganese, gold ore, iron ore, and other ores.

  • Fexible and convenient
  • strong maneuverability
  • Save a lot of capital construction
Get a quote whatsapp

Wheel Type Mobile Crusher

The tire-type mobile crushing station is towed and moved by vehicles. Its vehicle-mounted chassis is high and the turning radius is small, making it easy to drive on ordinary roads and more convenient to drive in the rugged and harsh road environment of the crushing site. It is widely used in mining ore crushing, construction waste recycling, Construction aggregate production, highway, railway, road and bridge construction and other industries.

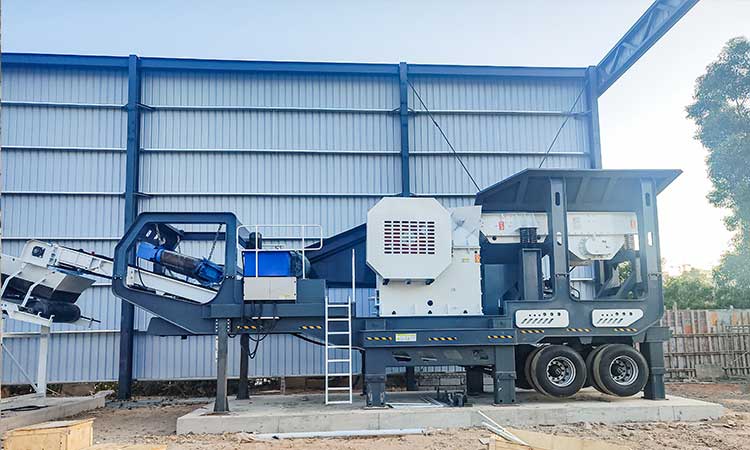

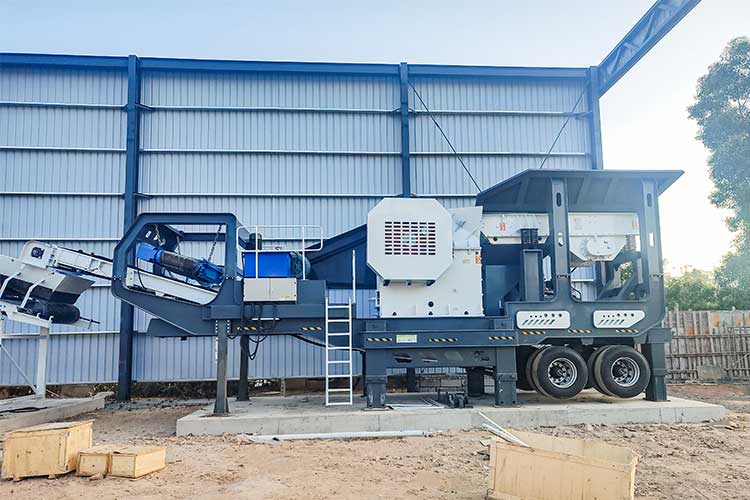

mobile jaw crushing plant

Mobile Jaw Crusher

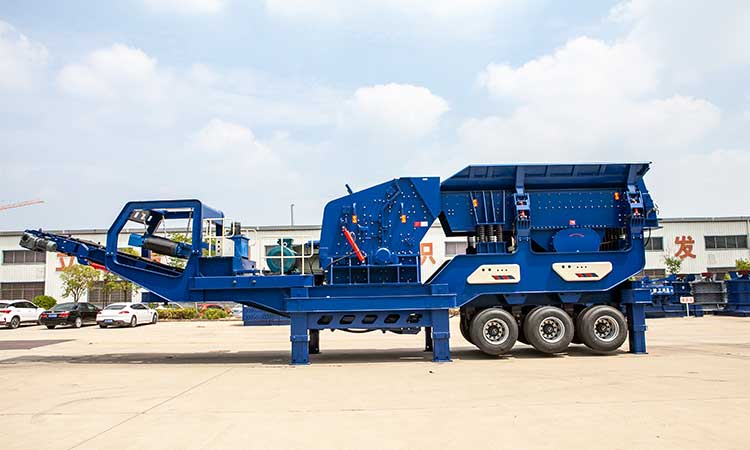

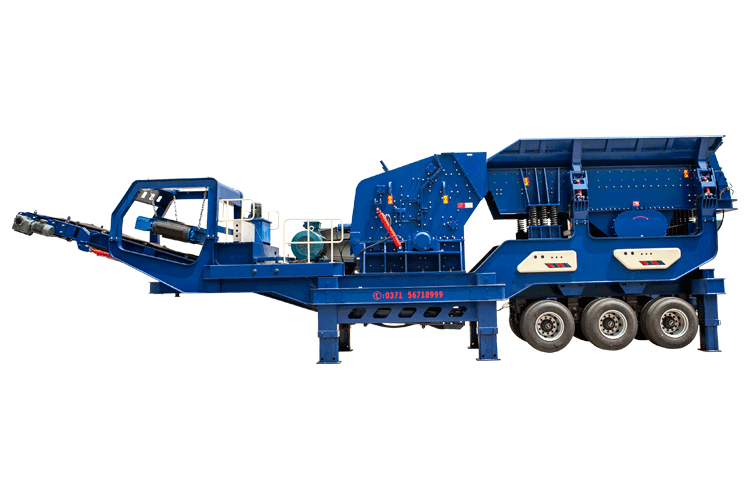

Mobile Impact Crusher

Mobile Impact Crusher
Mobile Cone Crushing Statio

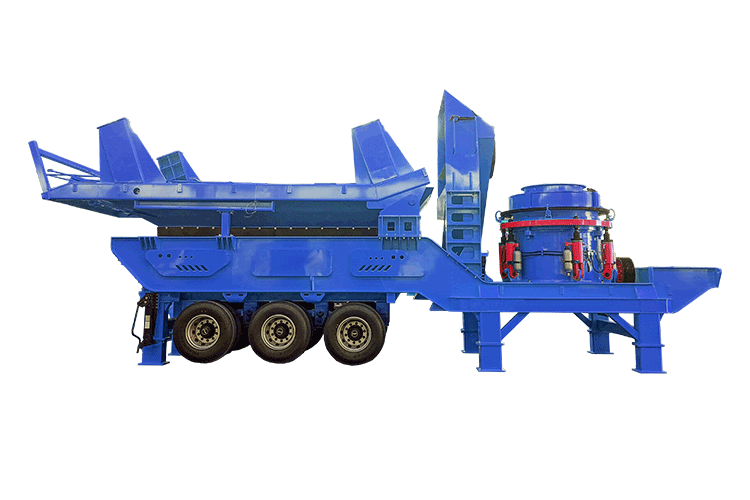

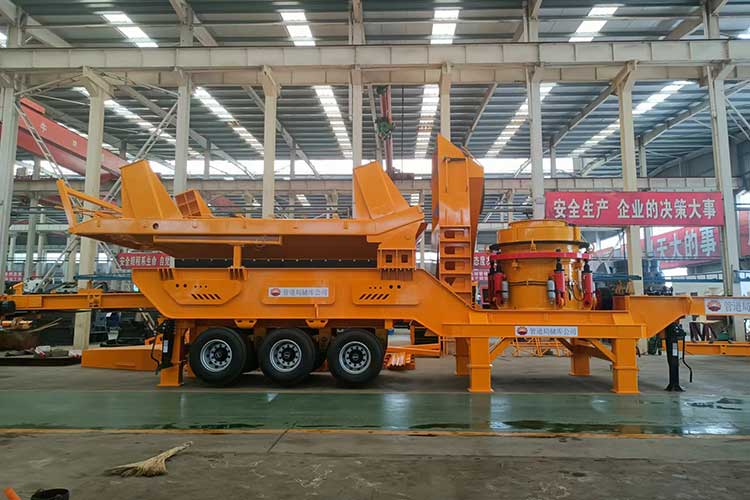

Mobile Cone Crusher

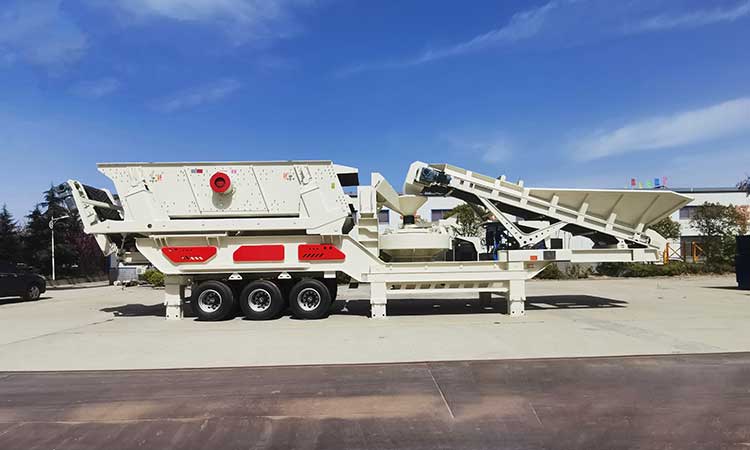

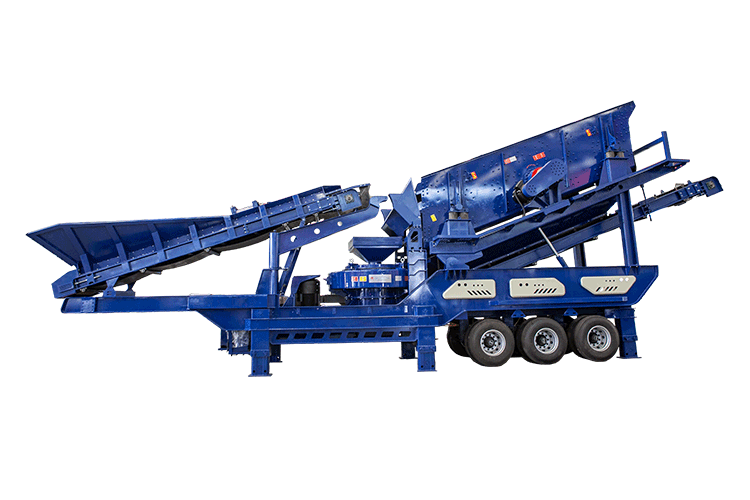

Mobile Sand Maker

Mobile Sand Maker

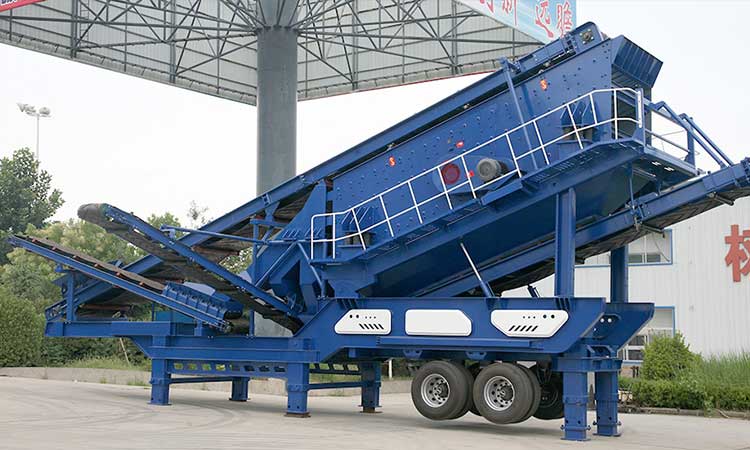

Mobile Screen station

Mobile Screens Sation
Get a quote whatsapp

Wheel Type Mobile Crusher Advantage

  • Light weight, small size, especially suitable for working in narrow spaces;
  • It is easy to transport. The tires can run without damaging the road surface. It is equipped with multi-functional attachments and has a wide range of adaptability.
  • Save fuel, fuel saving rate is up to 25%
  • It can work on slopes and meet the crushing requirements of mines, hydropower stations, coal mines and other projects.
Mobile Jaw Crusher
Mobile Impact Crusher
Mobile Cone Crusherr
Mobile sand Maker
Mobile Screen Station
Model Jaw crusher Vibrating feeder belt conveyor Number of axis Power Capacity Transportation dimensions (mm)
ZSLY-E57-G3090 PE500*750 GZD300*90 B650*10m 2 70kw 40-110 9400*2450*3650
ZSLY-E69-W3896 PE600*900 ZSW380*96 B800*12m 2 100kw 50-180 12500*2800*3960
ZSLY-E710-W4211 PE750*1060 ZSW110*420 B1000*12m 3 140kw 110-250 13500*2950*4300
ZSLY-C96-W3896 ZSC960 ZSW380*96 B800*12m 2 125Kw 80-200 12500*2800*3960
ZSLY-C100-W4211 ZSC1000 ZSW420*110 B1000*12m 3 140Kw 150-280 13600*2900*4300
ZSLY-C110-W4913 ZSC1100 ZSW490*130 B1000*12m 3 200kw 250-450 13800*3000*4400
Model Impact crusher Vibrating feeder Number of axis Capacity(t/h) Transportation dimensions (mm)
ZSLY-F1214-3YK1860 PF1214 3YK1860 2 180 13800*3000*4300
ZSLY-F1315-3YK2160 PF1315 3YK2160 3 275 13800*3150*4400
ZSLY-F1315-4YK2160 PF1315 4YK2160 3 282 13800*3150*4500
ZSLY-FW1315-3YK2160 PFW1315 3YK2160 3 305 13800*3150*4400
ZSLY-FW1315-4YK2160 PFW1315 4YK2160 3 310 13800*3150*4500
Model Cone crusher vibrating screen Number of axles Power(Kw) Capacity Transportation dimensions (mm）
ZSLY-P1200-3YK1860 CS1200 3YK1860 2 180 70-180 12600*3000*4300
ZSLY-P1400-3YK2160 CS1400 3YK2160 3 275 100-220 13800*3000*4400
ZSLY-CH430-3YK1860 CH430 3YK1860 2 210 80-180 13500*3000*4400
ZSLY-C440-3YK2160 CH440 3YK2160 3 275 120-250 13800*3000*4400
ZSLY-P200-3YK1860 HP200 3YK1860 2 210 80-180 12800*3000*4300
ZSLY-P300-3YK2160 HP300 3YK2160 3 275 120-250 13500*3000*4400
Model Sand Maker Vibrating Screen Capacity(t/h) Power(Kw) Number of axis Transportation dimensions (mm）
ZSLY-ZS1624-2YK1860 ZS1624 2YK1860 80-180 216 2 13800*2800*4300
ZSLY-ZS2028-2YK2460 ZS2028 2YK2460 150-380 460 3 14700*3000*4400
ZSLY-ZSDI200-2YK2160 ZSDI200 2YK2160 120-200 256 2 13800*2800*4300
ZSLY-ZSDI450-2YK2470 ZSDI450 2YK2470 250-450 540 3 14700*3000*4400
Model Vibrating screen Number of axles Power(Kw) Capacity Transportation dimensions (mm)
Vibrating screen 3YK1860 2 40 60-150 10500*2700*4200
Feeding belt conveyor 3YK2160 2 48 80-180 11000*3000*4400
Belt conveyor under vibrating screen 3YK2460 2 52 100-250 11000*3200*4400
 Side-opening belt conveyor 3YK2470 2 65 150-300 12500*3200*4500

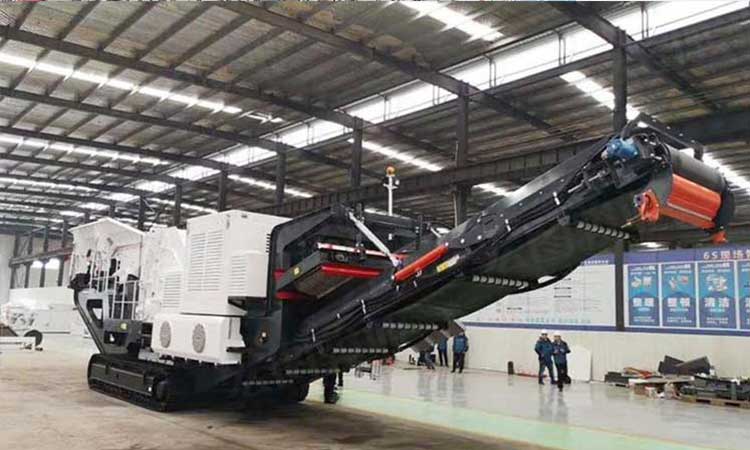

Crawler Type Mobile Crusher

The crawler mobile crusher is a high-efficiency crushing equipment that adopts self-driving mode, advanced technology and complete functions. This device can reach any location on the work site in any terrain conditions. It can achieve climbing operations, has good adaptability to mountains and wetlands, and is suitable for some harsh operating environments such as mines and open-pit coal mines.

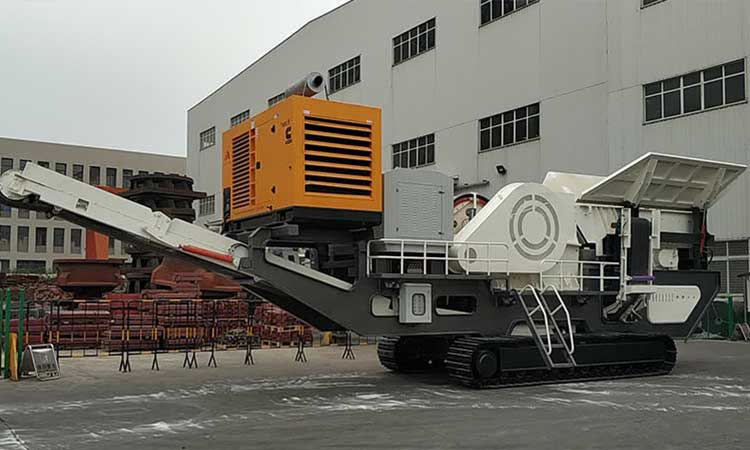

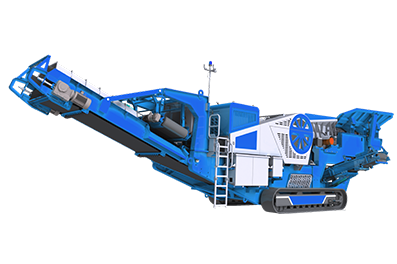

Crawler Jaw Crusher

Crawler Jaw Crusher
Crawler Impact Crusher

Crawler Impact Crusher

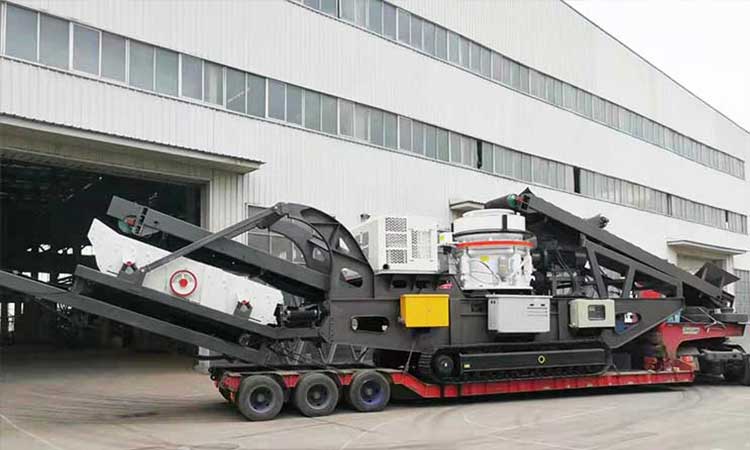

Crawler Cone Crusher

Crawler Cone Crusher

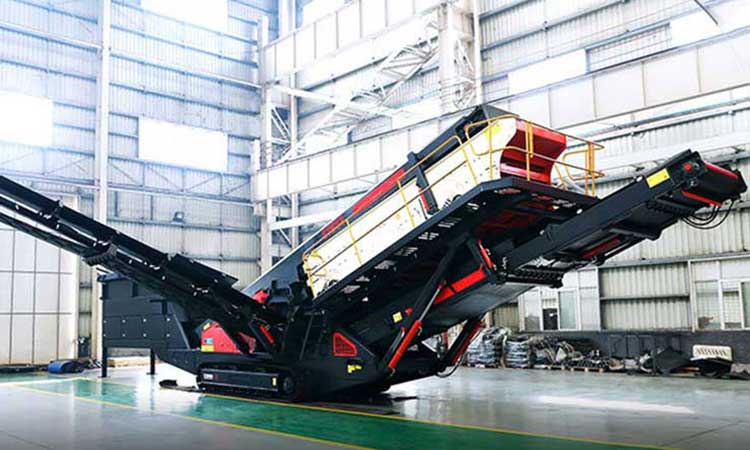

Crawler Screen Station

Crawler Screen Station
Get a quote whatsapp

Crawler Type Mobile Crusher Advantage

  • It is not only reliable in performance but also powerful in power, providing a steady stream of strong power for equipment crushing operations.
  • The equipment layout is compact and reasonable, and with full hydraulic system control, the equipment is more flexible and controllable;
  • The crawler mobile crusher saves a lot of infrastructure and relocation costs, thereby reducing investment costs and operating costs.
  • The whole machine is hydraulically driven and equipped with a mature high-torque traveling motor, which can realize flexible movement and free transition.
Crawler Jaw Crusher
Crawler Impact Crusher
Crawler Cone Crusherr
Crawler Screen Station
Model length(mm) width(mm) height(t/h) weight(t) Max.feeding size(mm) feeding size(mm) output size(mm)
MJ150 124800 3020 3510 40 460 930X580 40-175
MJ250 15230 3020 3610 50 560 1060X700 70-200
MJ350 16190 3020 3810 52 600 1130X750 70-200
MJ550 17630 3120 3810 60 700 1200X870 70-275
Model Max Feeding Size（mm） Main machine Screen machine Discharge opening size
(mm)		 Capcity(t/h)
MHYP150 600mm PF1010 HY1237 25-100 100-200
MHYP260 900mm PF1214 HY1540 25-100 200-400
MHYP350 1000mm PF1317 HY1540 20-200 250-500
MHY550 1000mm PF1420 ---- 20-200 400-600
Model length(mm) width(mm) height(t/h) weight(t) crusher type Vibrating feeder output size(mm)
MC300 13880 3220 3810 52 Single cylinder / 25-50
MC400 17880 3320 3810 57 Single-cylinder 1S1540 25-54
MC500 14880 3220 3610 55 Multi-cylinder / 10-45
MC550 17880 3320 3610 60 Multi-cylinder 1S1540 10-45
Model length(mm) width(mm) height(t/h) weight(t) Number of screen Vibrating Screen width(mm) Vibrating Screen heigh
t(mm)
MS3515 13830 2920 3710 34 3 1500 5000
MS3618 17470 3070 3710 38 3 1800 6000
MS5618 18470 6070 4070 45 4 1800 6000

Small Mobile Crusher

The Small Mobile crushers can be easily moved between production locations, reducing transportation needs and operating costs. Customers can choose to use electric motor or diesel engine drive according to site conditions. The advantage of the diesel engine is that it can ensure that the crushing plant can operate in any area without considering the power source. The main equipment of this mobile crusher includes the selection of jaw crusher and hammer crusher, which can also be designed according to different customer needs.

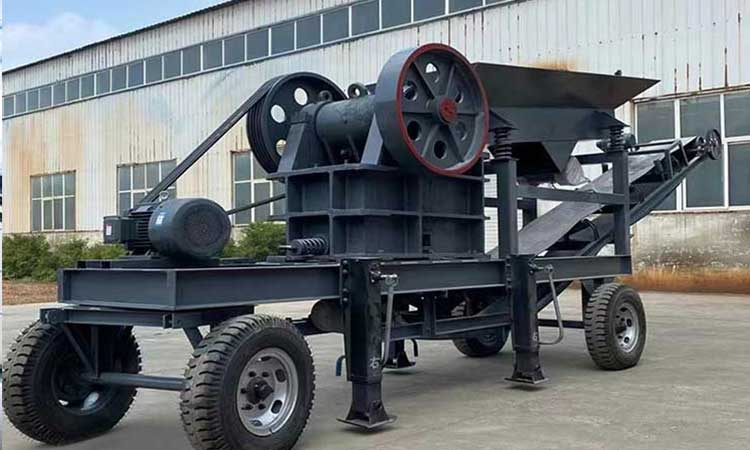

Electric Engine Mobile Jaw Crusher

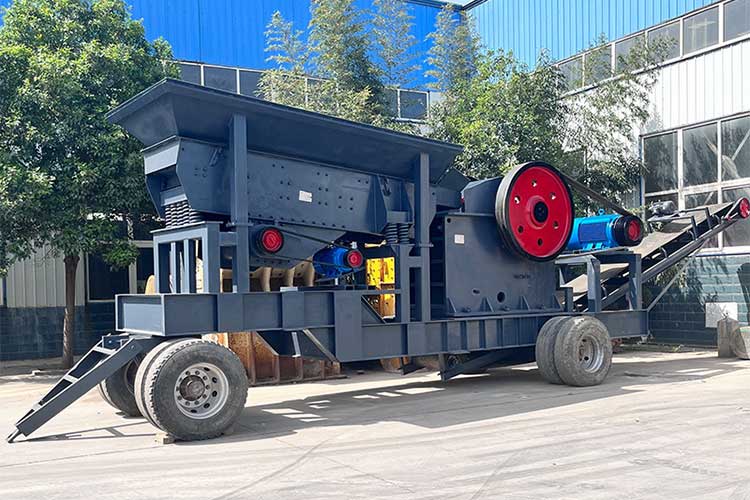

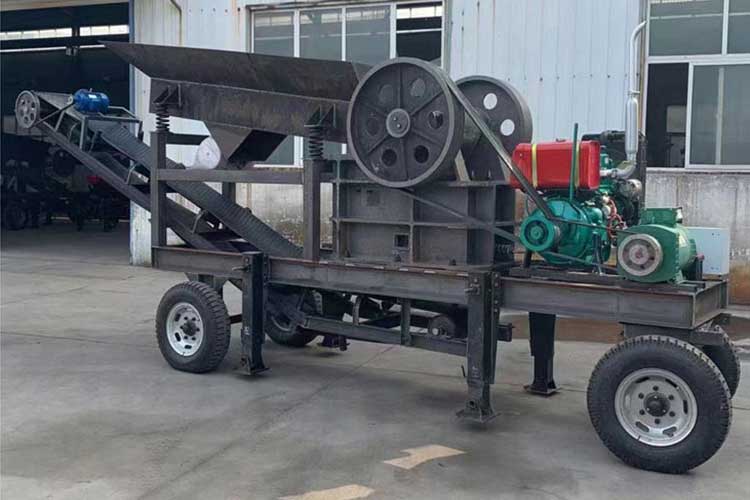

Diesel Engine Mobile Jaw Crusher

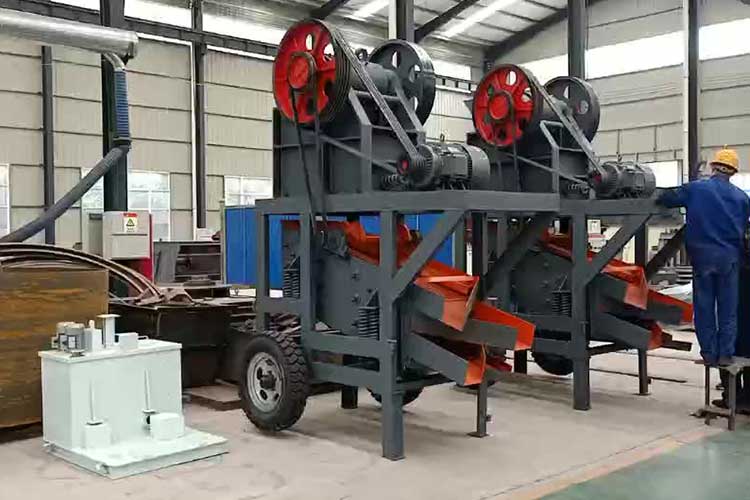

Diesel Jaw Crusher With Vibrating Screen

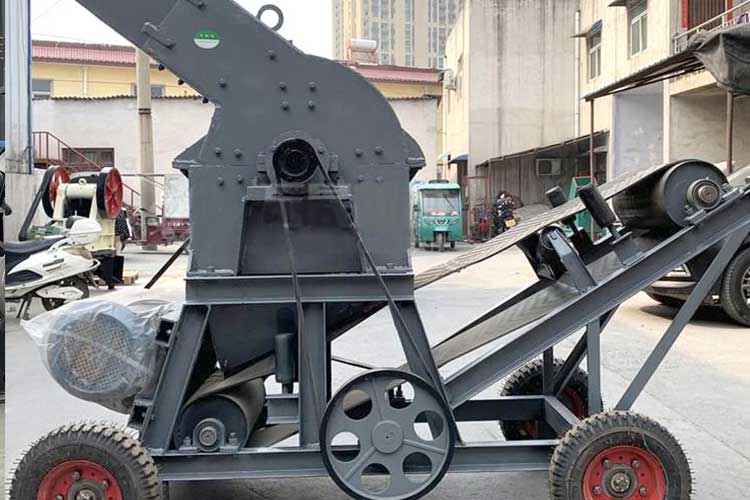

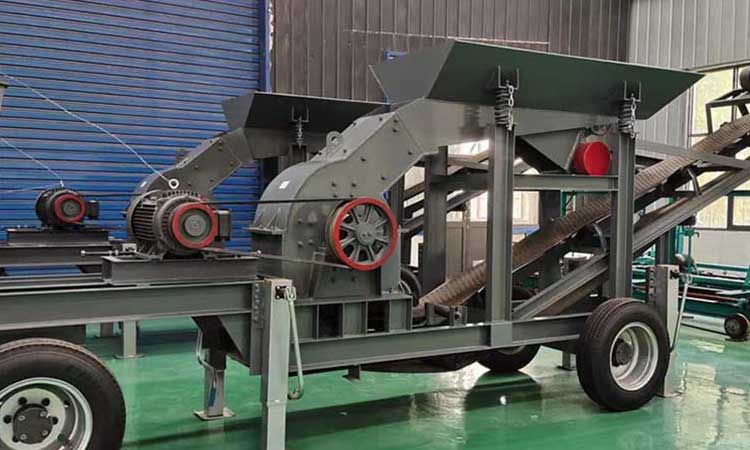

Electric Engine Mobile Hammer Crusher

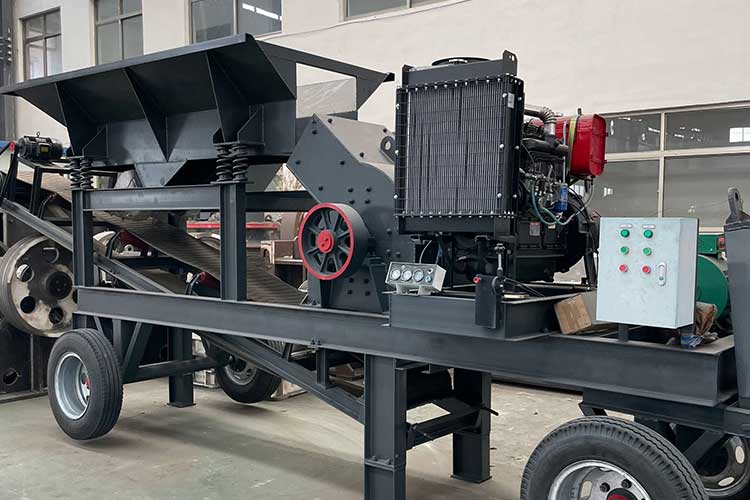

Diesel Engine Mobile Hammer Crusher

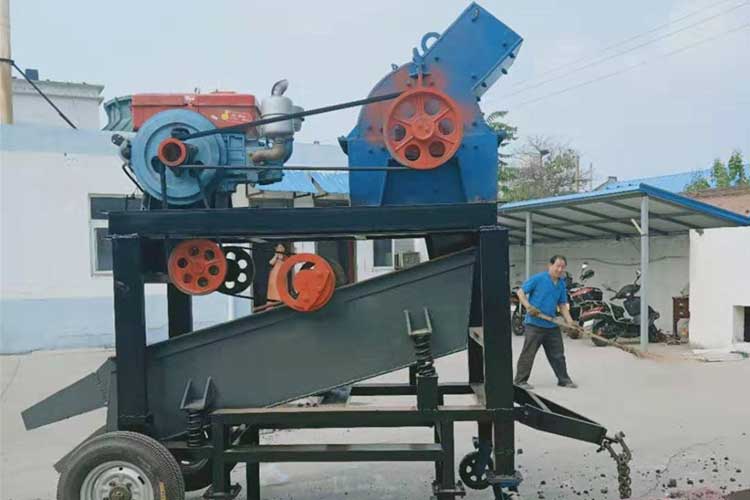

Diesel Hammer Crusher With Vibrating Screen
Get a quote whatsapp

Small Mobile Crusher Advantage

  • Be movable and drive by diesel engine if the working site is limited.
  • Simple and reliable structure,low operation costs
  • Deep crushing cavity, no dead zone, increasing capacity and output of the feeding
Crusher Model Crusher Model Max feeding size (mm) Capaticy(t/h) Crusher Power  (Kw)
Jaw Crusher GWPE150 PE150×250 125 1-3 5.5
GWPE200 PE-200x350 180 2-10 11
GWPE250 PE-250x400 210 5-20 15
GWPE400 PE400×600 340 16-60 30
GWPE500 PE500×750 425 40-80 55
GWPE600 PE600×900 500 60-150 75
GWPE750 PE750×1060 630 150-300 110
GWPEX300 PEX300×1300 250 10-65 75
Hammer Crusher GWPC300 PC300x200 80 2-5 5.5
GWPC400 PC400×300 100 5-8 7.5
GWPC600 PC600×400 120 10-18 18.5-45
GWPC800 PC800×600 120 20-35 55
GWPC1000 1000×1000 200 30-80 110
GWPC1250 PC1250×1250 250 50-100 185
GWPC1250 PC1300×1200 250 60-150 240
GWPC1250 PC1400×1400 350 120-160 280
GWPC1250 PC1600×1600 350 150-280 450

Mobile Crusher Cases

350TPH Granite Crushing Plant in Russia

Country: Russia

Material: Granite

Feeding Size: 0-100mm

Capacity: 350t/h

Get The Price Now

150tph Granite Mobile Crushing Line in Mongolia

Country: Mongolia

Material: granite

Feeding Size: 0-600mm

Capacity: 150t/h

Get The Price Now

300TPH Andesite Crushing Plant in Canada

Country: Canada

Material: Andesite

Feeding Size: 150mm

Capacity: 300t/h

Get The Price Now

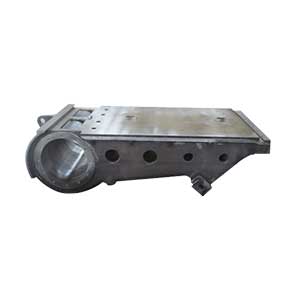

Mobile Crusher Parts

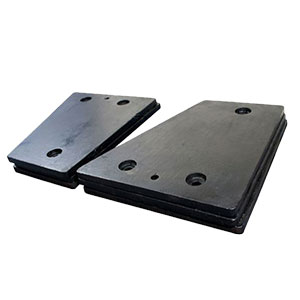

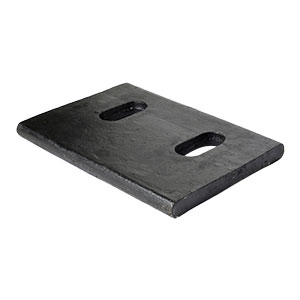

Toggle plate

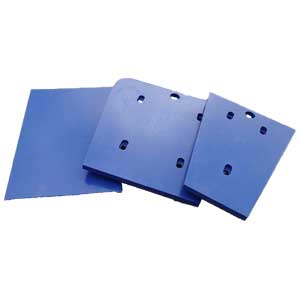

Lining plate

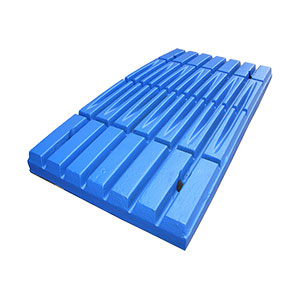

Jaw plate

Movable jaw plate

Guard Board

Mantle&concave

Blow bar

Impact plate

Gear

Gear

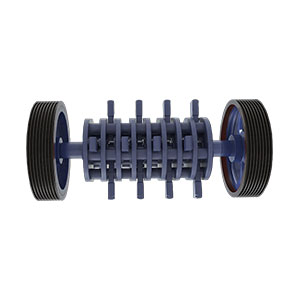

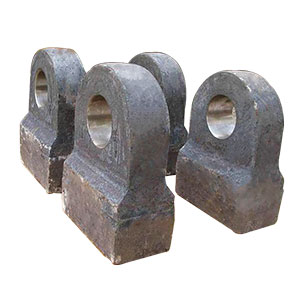

Crusher hammer

Screen plate
